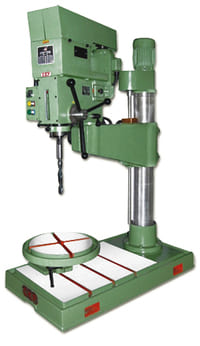

Radial Drilling Machine All Geared, 25mm 1Hp 3Ph RDH/325/GT With Electric: CKP
Non-returnable
₹215,000.00
Out of stock
Effortless Hole Drilling Solutions: Choose Our Radial Drills
_productIds
358315000008019639,358315000016929038,358315000016929009,358315000011000001,358315000011947046,358315000002654507,358315000001948112,358315000005391298,358315000005493567,358315000016843393,358315000007227524,358315000001918161 Specification
Drilling Capacity in Steel 25mm Tapping Capacity in Steel M12 Morse Taper in Spindle MT3 Spindle Travels 140 Feed Hand No. of Spindle Speeds 10 Range of Spindle Speeds (rpm) 100-142-210-310-450/600-852-1260-1860-2700 Power of Spindle Drive Motor 1 HP 1440 rpm/440v AC, 3Ph.50Hz Diameter of Pillar (Mat: CI) Ø 150mm Drilling Radius-Max /Min 725mm/230mm Distance between Spindle Nose & Table -Max/Mini 610mm/60mm Spindle Nose & Base-Max/Mini 865mm/320mm Pillar front to Spindle-Max/Mini 725mm/230mm Base to Table 260mm Table Working surface Ø 355 Base Working surface 760 x 530 Base No. of ' T ' - Slots 3Nos Space Occupied (length x width x height) 1250 x 760 x 1575(49" x 30" x 62") Net weight 650 Kg
