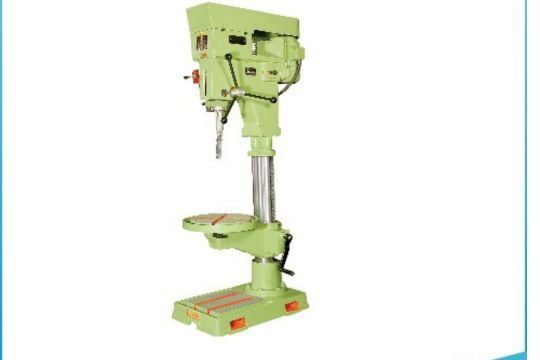

Pillar Drilling Machine, 25mm 1Hp 3Ph P2/25 (Belt and Geared) with Electric: CKP
Non-returnable
₹124,000.00
Out of stock
Safety and efficiency come together in our pillar drills, ensuring a smooth drilling experience for all skill levels.
_productIds
358315000008019639,358315000016929038,358315000016929009,358315000011000001,358315000011947046,358315000002654507,358315000001948112,358315000005391298,358315000005493567,358315000016843393,358315000007227524,358315000001918161 Specification
Drilling capacity in steel 25mm Tapping capacity M16 Morse Tapper in spindle MT 3 Spindle Travers 140 Pillar diameter 120 Distance between center of spindle and column front 260mm Max. Distance between of spindle and table 610mm Max. Distance between of spindle and base 1080mm Table working surface ( Overall ) 350 (480) Table vertical Travers ( Overall ) 470mm Base Working surface ( Manual ) 340 x 300 (440 x 710)mm No. of Spindle speed 10 Range of spindle speeds (rpm) 100-142-210-310-450-600-852-1260-1860-2700mm Feeds Hand Power of drive motor 415V AC3 Ph50 Hz Space occupied [L X B X H]850 x 600 x 1975mm Net weight 380 Kgs Gross weight 600 Kg
