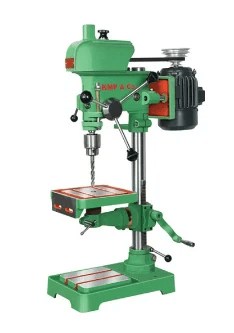

Pillar Drilling Machine, 13mm 0.5Hp (Belt Type) Square Table W/o Electric: KMP
Non-returnable
₹16,500.00
Invest in a top-quality pillar drill and take your drilling projects to the next level - browse our collection today
_productIds
358315000005120383,358315000016929038,358315000001947113,358315000003932014,358315000002654498,358315000001948544,358315000001947860,358315000002033580,358315000006107086,358315000005493567,358315000002238227,358315000016843384 Specification
Drilling Capacity in Steel 13 Sipindle Travel 80 Spindle Taper 13KS- Solid 13HS- MT-1 No. of Spindle Speed 04 Range of Spindle Speed 500-2825 Column Diameter 46.80 Max. Distance between Spindle Center to column Face 152 Max. Distance between Spindle Nose to Base Plate 495 Size of Square Table Dia.205 Size of Base Plate 235 x 360 Electric Motor 3 Phase 0.5 H.P. 1440 RPM 'V'-Belt Size M-2360 Net Weight of Machine in Kgs. 44 Overall Dimensions of Machine H x W x L 750 x 335 x 375 Wooden Case Dimensions H x W x L 800 x 385 x 425 Choose Quantity
