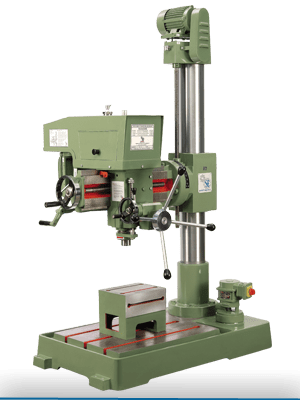

Radial Drilling Machine, 25mm 1Hp 3Ph SER-25 (Universal) W/o Electric: Siddhapura
Non-returnable
₹110,975.00
Out of stock
Specification
Drilling Capacity (in Mild Steel) 25mm. Spindle nose MT 3. Spidle Travel 200mm. No. of Spindle Speed 8. Range of Spindle Speed 80-1800 RPM. Main Motor 1Hp., B-45 V-belt. Arm Elevating Motor 0.5Hp., A-19 V-belt. Working Table L X W X H 275X205X205mm. Drilling Radius Min./Max 365/720 mm. Distance from Column to spindle Min./Max. 300/655 mm. Max. Drilling Head Travel 355 mm. Base Plate to spindle Min./Max 880/175mm. Diameter of Column 130 mm Swivel of arm L/R side 90°. Base Plate L X W X H 1005 X 605 X 125mm. Working Surface 620 X 490mm. No. of T-Slots & Size 3 & M-16. Dimensions 1100 X 700 X 1800mm.
